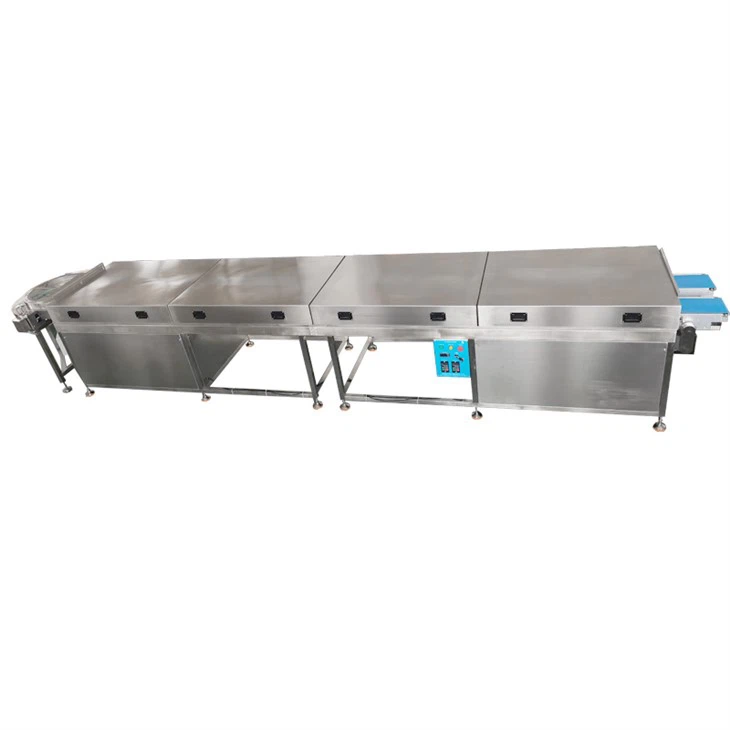

Introduction 10M Turing Cooling Tunnel - Space-Saving High-Efficiency Cooling Equipment
Product Overview
Our 10M Turning Cooling Tunnel is a specially designed space-saving cooling solution, engineered for food processing enterprises with limited workshop space. Featuring a smart turning structure with a perspective window at the bend, this tunnel achieves the cooling effect equivalent to a 12m straight cooling tunnel with an actual machine length of only 6 meters-maximizing cooling efficiency while minimizing floor space occupation.
Ideal for cooling chocolate products (chips, drops, enrobed snacks), pastry, dairy products and other food that requires rapid temperature reduction, the tunnel is equipped with a high-performance Copeland compressor, precise temperature control system and humanized structural design. It ensures stable, uniform and efficient cooling, perfectly matching the small-batch and medium-batch production needs of food factories, confectionery workshops and snack processing plants with space constraints.
Technical Specifications
|
Parameter |
Detailed Specification |
|
Model |
10M Turing Cooling Tunnel |
|
Actual Machine Length |
6m |
|
Equivalent Straight Cooling Tunnel Effect |
12m |
|
Overall Dimension (L×W×H) |
6035×950×1000mm |
|
Voltage |
380V, 3phase |
|
Compressor Configuration |
1 x 5P Copeland compressor (external, outdoor unit) |
|
Temperature Control Range |
10°C to -15°C (adjustable) |
|
Main Material |
Food-grade stainless steel |
|
Structural Feature |
Middle turning section with perspective window |
|
Application |
Cooling of chocolate products, pastry, dairy products, snack food, etc. |
|
Installation Type |
Integrated, easy to install (matching production line) |
How It Works
Food display
Core Functions & Key Advantages
🔹 Space-Saving Turning Design, Super High Space Utilization
With an actual machine length of just 6m, the innovative turing structure realizes the cooling effect of a 12m straight cooling tunnel, which is the optimal choice for customers with narrow workshop space or limited layout area, effectively saving valuable production space.
🔹 Perspective Window at Turning Section, Visualized Production Monitoring
A transparent perspective window is installed at the middle turning part of the cooling tunnel, allowing operators to directly observe the internal material conveying and cooling status in real time. It is convenient to find abnormal production conditions in time and ensure the stability of product cooling quality without opening the tunnel.
🔹 High-Performance Compressor, Stable & Efficient Cooling
Configured with 1 x 5P Copeland external outdoor unit compressor, the core cooling component has reliable performance, strong refrigeration capacity and low energy consumption. It can quickly reduce the temperature of the tunnel and maintain stable refrigeration output, adapting to continuous production needs.
🔹 Wide & Precise Temperature Control Range
The tunnel's adjustable temperature range is 10°C to -15°C, which can be flexibly set according to the cooling process requirements of different food products. Precise temperature control ensures consistent cooling effect, avoiding product quality problems such as uneven solidification, surface cracking and poor taste caused by unstable temperature.
🔹 Compact Overall Dimension, Easy Layout & Installation
The integrated compact design with overall dimension of 60359501000mm is easy to integrate into existing food production lines, with simple on-site installation and no need for large-scale workshop transformation. It can be perfectly matched with chocolate enrobers, depositors, forming machines and other food processing equipment.
🔹 Durable & Food-Grade Construction
All internal and external contact parts of the tunnel are made of food-grade stainless steel, which meets food hygiene and safety standards, is corrosion-resistant, high-temperature resistant and easy to clean and maintain. The closed tunnel structure effectively prevents dust and impurities from entering, ensuring the purity of the cooled products.
🔹 Stable Conveying System
Equipped with a silent and wear-resistant food-grade conveyor belt, the conveying speed is adjustable (matching the production line speed), which ensures smooth and continuous material conveying, no jamming or deviation, and consistent cooling time of each product for uniform quality.
After-Sales Service
We provide comprehensive pre-sales and after-sales support for all our equipment:
Pre-sales: Professional technical team provides customized layout suggestions according to your workshop space and production line matching needs.
Installation: Free on-site installation and commissioning, and professional training for your operators on equipment operation, parameter setting and daily maintenance.
Warranty: Quality warranty for core components (such as Copeland compressor), free repair and replacement of faulty parts within the warranty period.
After-sales: 24-hour online technical support.
We are committed to providing high-quality, space-saving and efficient food processing equipment solutions for customers, helping you optimize production layout, improve production efficiency and reduce production costs!
Contact Us
If you have any questions about equipment parameters, layout matching or customization needs, please feel free to contact our sales team at any time. We will reply to you as soon as possible and provide you with the most professional solutions!
